Modlite OKW V2 Light Head Multi-Mode Version

Product Overview

The OKW V2 Multi-Mode Light Head is one of Modlite's high-performance light heads, designed for users requiring high-intensity spotlight and long-distance illumination.

This product is compatible with Modlite 18650 and 18350 bodies, and can also be used with compatible Dual Fuel body systems on the market.

Suitable for handheld flashlight configurations, offering powerful and stable illumination performance.

Mode Functions

This product offers two operating modes:

Single Mode
Provides maximum brightness output only, simple and direct operation.

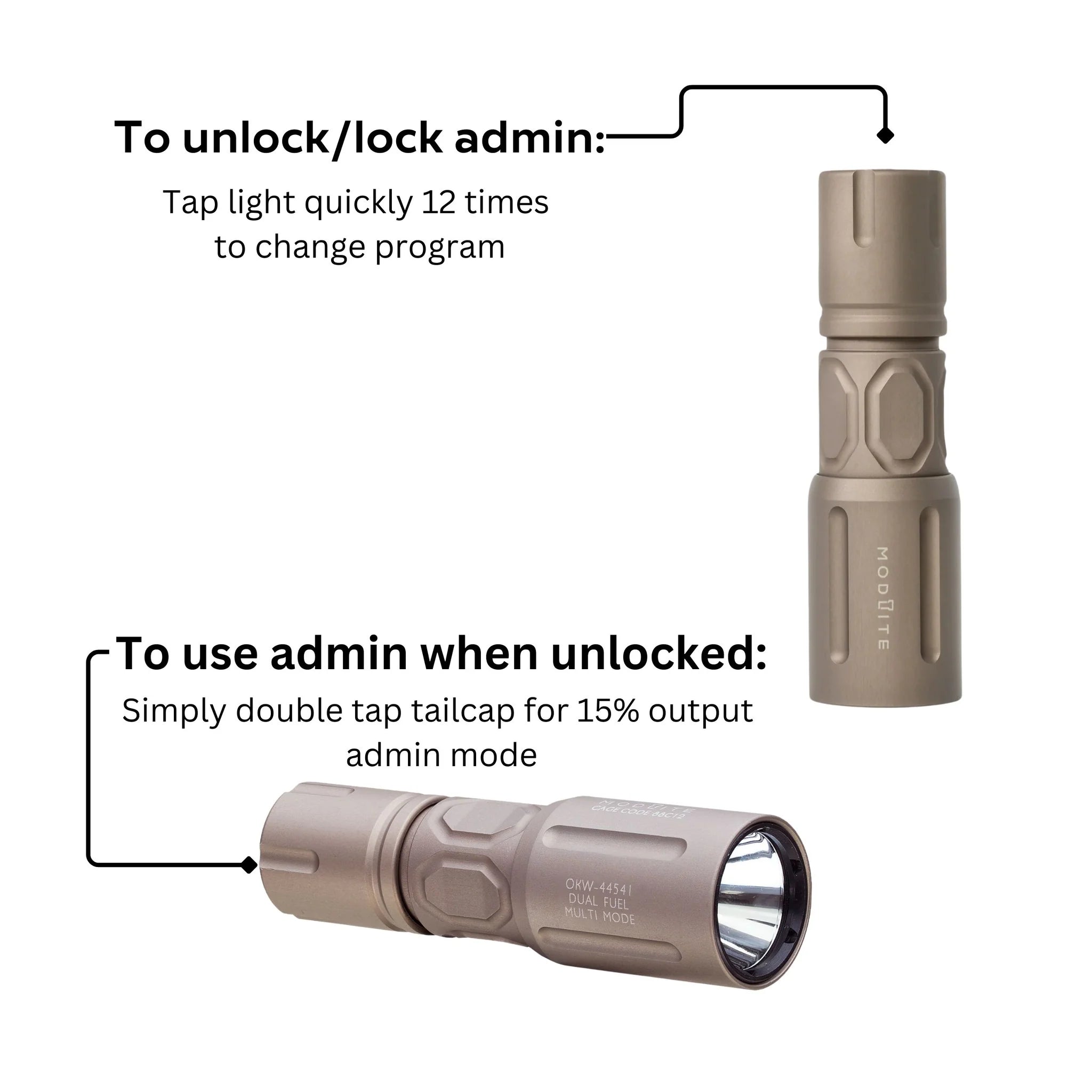

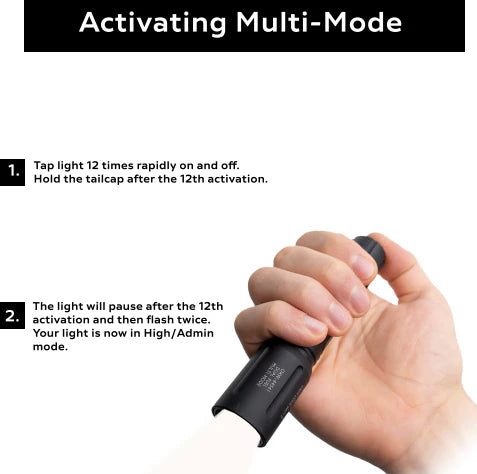

Multi-Mode
Offers two selectable settings:
High Mode
High plus Regulated Low Mode

Users can switch settings as needed for the best user experience.

Runtime Performance

Using 18650 Battery

High mode runtime is approximately 75 minutes, which is the factory default mode.

Regulated mode can use both high and low.
High mode runtime approximately 75 minutes.
Low mode runtime approximately 10.6 hours.
Low output is approximately 15% of high output.

Using 18350 Battery

High mode runtime is approximately 35 minutes, which is the factory default mode.

Regulated mode can use both high and low.
High mode runtime approximately 35 minutes.
Low mode runtime approximately 3.6 hours.
Low output is approximately 15% of high output.

Battery Compatibility

Supports multiple battery configurations:

18350
18650
Two CR123 batteries

Note:
A single CR123 battery cannot activate this product.
Two must be used in series.

Surface Finish

Features Type III hard-anodized finish, offering excellent wear resistance and corrosion resistance.

Due to manufacturing process characteristics:
Color variations may occur between different products.
Subtle differences may also exist within the same batch of products.

These do not affect product performance or quality.

Product Features

High-intensity spotlight design
Suitable for long-distance illumination
Dual-mode setting for high operational flexibility
Fully potted driver circuit design enhances shock resistance and reliability
6061 aluminum alloy construction with military-grade hard-anodized finish
BOROFLOAT high-transparency lens with approximately 98 to 99% light transmission
Supports various body and battery systems

Specifications

Weight: 2.1 oz
Diameter: 1 and 1/4 inches
Length: 1 and 3/4 inches

Important Notes

This product is a light head module.
It must be used with a compatible body and battery.

Incorrect battery configuration may result in product malfunction or safety risks.
