PECI Flotation® TFSS-5326 Covert Inflatable Aid

Covert Carry × High Buoyancy Support × Maritime Special Operations

The TFSS-5326 (Tactical Flotation Support System™) is a tactical inflatable flotation aid developed by PECI Flotation, L.L.C., specifically designed for special operations personnel, combat divers, and maritime airborne mission requirements.

The system provides additional buoyancy without interfering with equipment configuration, assisting users in carrying heavy loads during waterborne infiltration, maritime operations, vessel boarding, and emergency egress missions. It is also compatible with HABD (Helicopter Aircrew Breathing Device) to support underwater egress from submerged vehicles or aircraft.

Product Features

■ Dual-Bladder Flotation System

• Independent left and right modular design

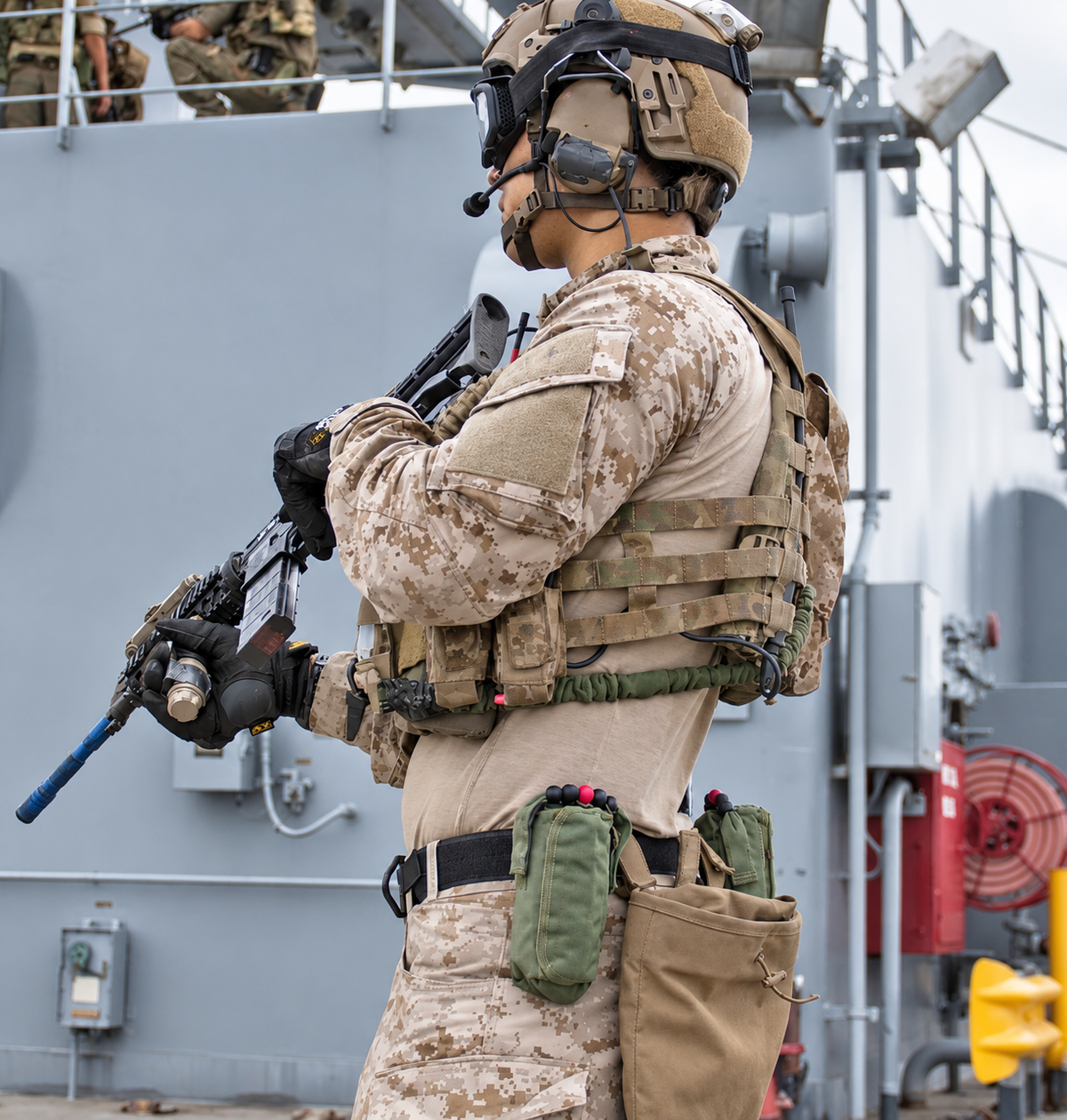

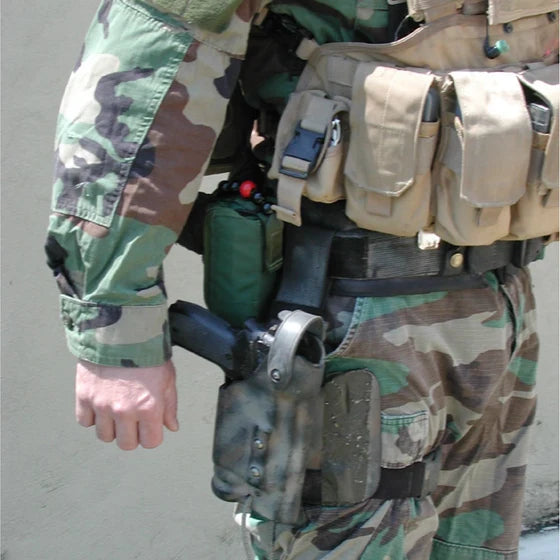

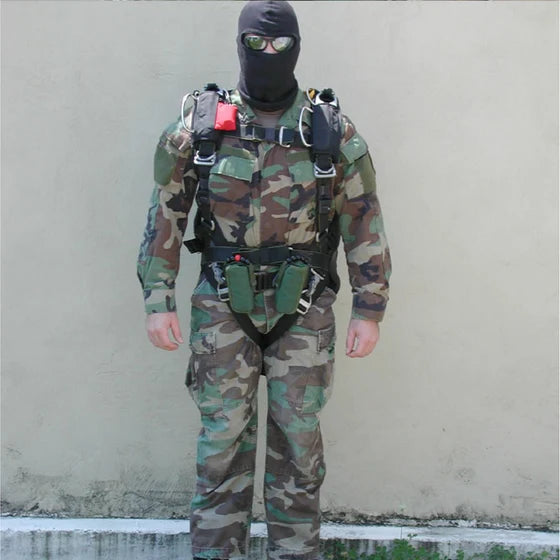

• Mounted on both sides of the belt
• Does not interfere with equipment operation
• Maintains a low-visibility configuration

■ High Buoyancy Output

Provides:

• Surface buoyancy: 80 lbs
• At 15 ft depth: 57 lbs of positive buoyancy
• At 33 ft depth: 45 lbs of positive buoyancy

Delivers sufficient buoyancy to support fully equipped personnel during waterborne operations.

■ CO₂ Rapid Inflation System

Utilizes a manually activated CO₂ cylinder for inflation.

• Rapid, one-handed operation
• Instant inflation
• Suitable for emergency situations
• Enhances underwater survivability

■ Backup Oral Inflation Function

In the event of a CO₂ system failure:

• Inflation via oral inflation tube
• Provides a redundant buoyancy source
• Increases system reliability

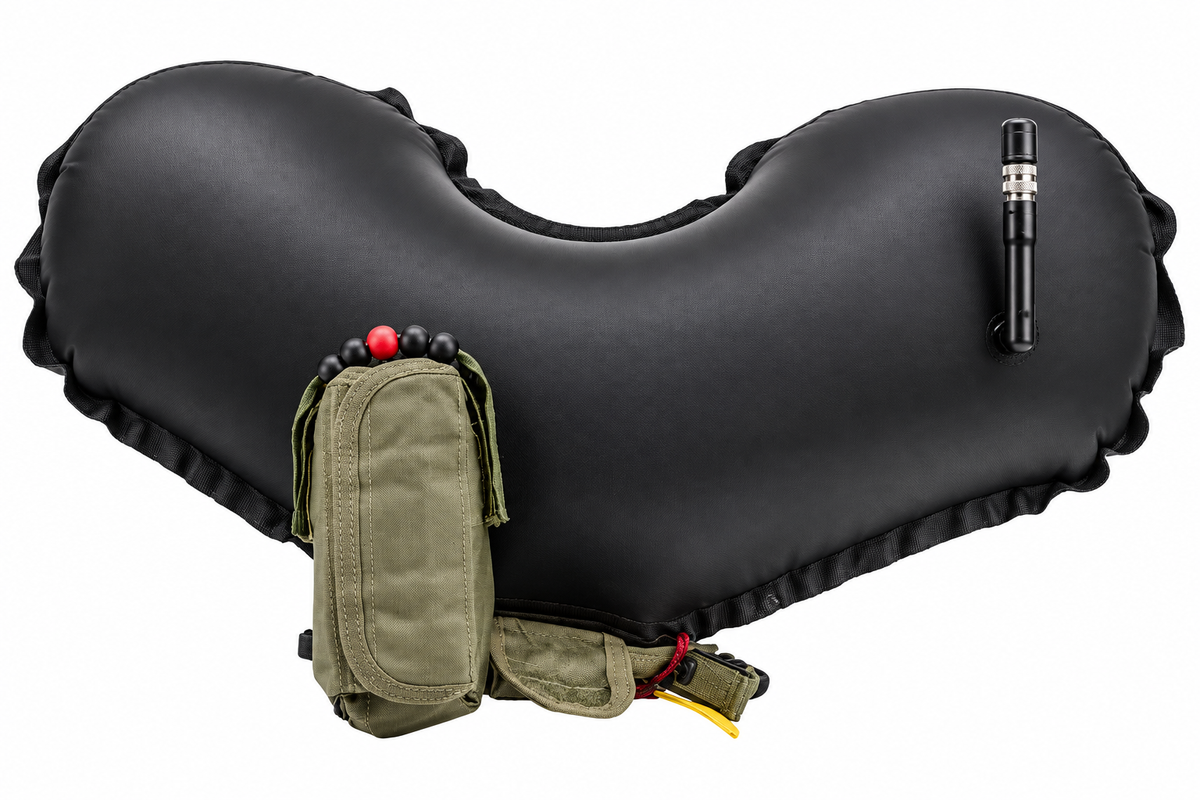

■ Reusable Flotation Bladders

• Constructed with welded fabric
• Repackable for reuse

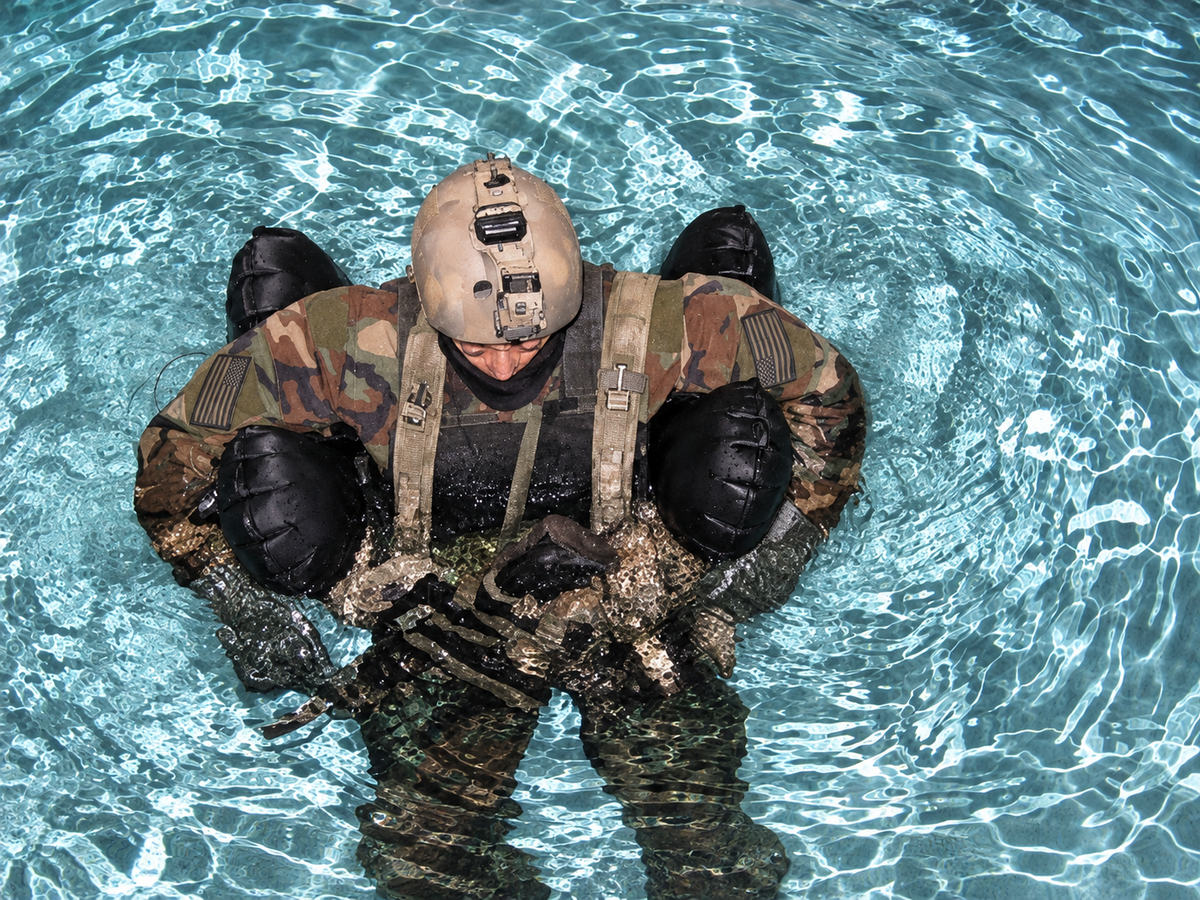

• Deploys under the arms when inflated
• Quick deflation and storage after use

■ GLP Rapid Deployment System

• Utilizes patented Grommet, Loop & Pin (GLP) locking structure
• Prevents accidental activation
• Enhances carry safety
• Provides high-compression storage
• Suitable for covert carry requirements

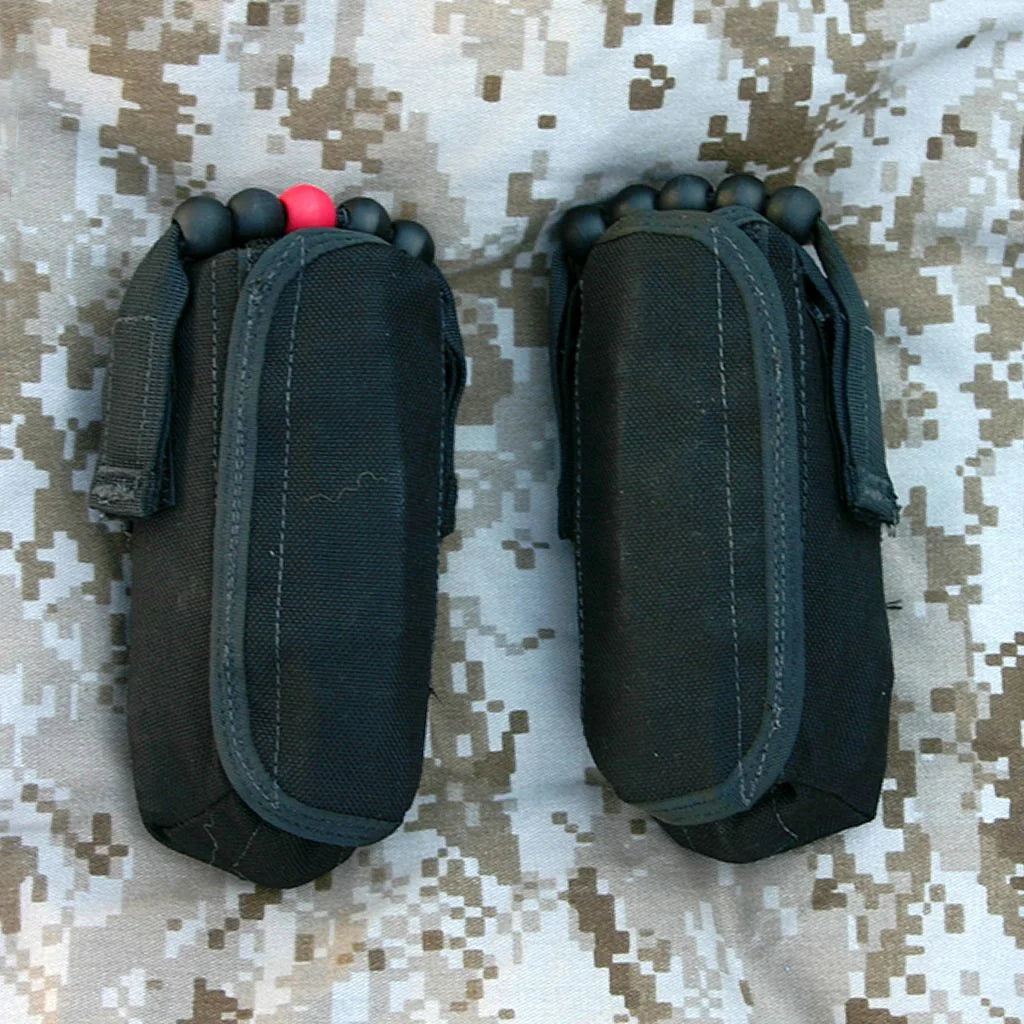

■ Cordura® Protective Pouch

• Protects the bladder system
• Prevents accidental activation
• Increases durability
• Adapts to high-intensity tactical environments

Operation

Bladder Deployment

Pulling the activation handle triggers the following sequence:

1. Release of GLP locking system
2. Opening of the storage pouch
3. Activation of the CO₂ inflation mechanism
4. Automatic inflation of the bladders

Backup Inflation

If the CO₂ system is inoperable:

• Depress the Oralock valve
• Manually inflate via the oral tube

Deflation Procedure

• Depress the Oralock valve
• Exhaust gas through the oral tube
• System is ready for reset after replacing the CO₂ cylinder

Structural Components

Each system consists of two modules (left and right):

• Flotation bladders
• CO₂ inflation systems
• Storage pouches
• GLP locking systems
• Oral inflation tubes
• Activation handles

Technical Specifications

Model

• TFSS-5326

System Type

• Tactical Flotation Support System™

Buoyancy Capability

Surface

• 80 lbs

At 15 ft Depth

• 57 lbs positive buoyancy

At 33 ft Depth

• 45 lbs positive buoyancy

Inflation Method

• Manual CO₂ inflation
• Backup oral inflation

Mounting Location

• Belt sides

Stowed Dimensions (Per Side)

• Length: 6.5"
• Width: 2.75"
• Depth: 2.25"

Pouch Material

• Cordura® Nylon

Applicable Environments

• Maritime special operations
• Combat diving
• Waterborne infiltration
• Maritime interdiction operations
• Helicopter water operations
• Emergency escape and egress

System Characteristics

• Reusable
• Dual-module configuration
• Rapid deployment
• Redundant inflation function
• Low-profile, covert carry design
