PTS® B.E. Meyers MAWL-PTS Multi-Purpose Laser Illuminator/Designator

Officially Licensed × VIS/IR Dual Mode × Ergonomic Offset Design × Top Choice for Night Combat Training

Officially licensed by B.E. Meyers®, the MAWL-PTS Multi-Purpose Laser Illuminator/Designator fully inherits the ergonomic design philosophy of the MAWL® (Modular Advanced Weapon Laser), breaking away from the traditional box-shaped laser module layout. It features a unique offset structure, allowing shooters to maintain their aiming field of view while enjoying a more intuitive and faster operating experience.

The MAWL-PTS is designed for airsoft, night combat training, simulated missions, and tactical applications. It supports VIS (Visible Light) and IR (Infrared) dual modes, with SHORT, MID, and LONG range settings, allowing users to quickly switch to the most suitable lighting and designation configuration for different environments.

Whether for indoor CQB, outdoor mobility, woodland searches, or long-range observation, the MAWL-PTS can provide excellent lighting and target designation capabilities.

---

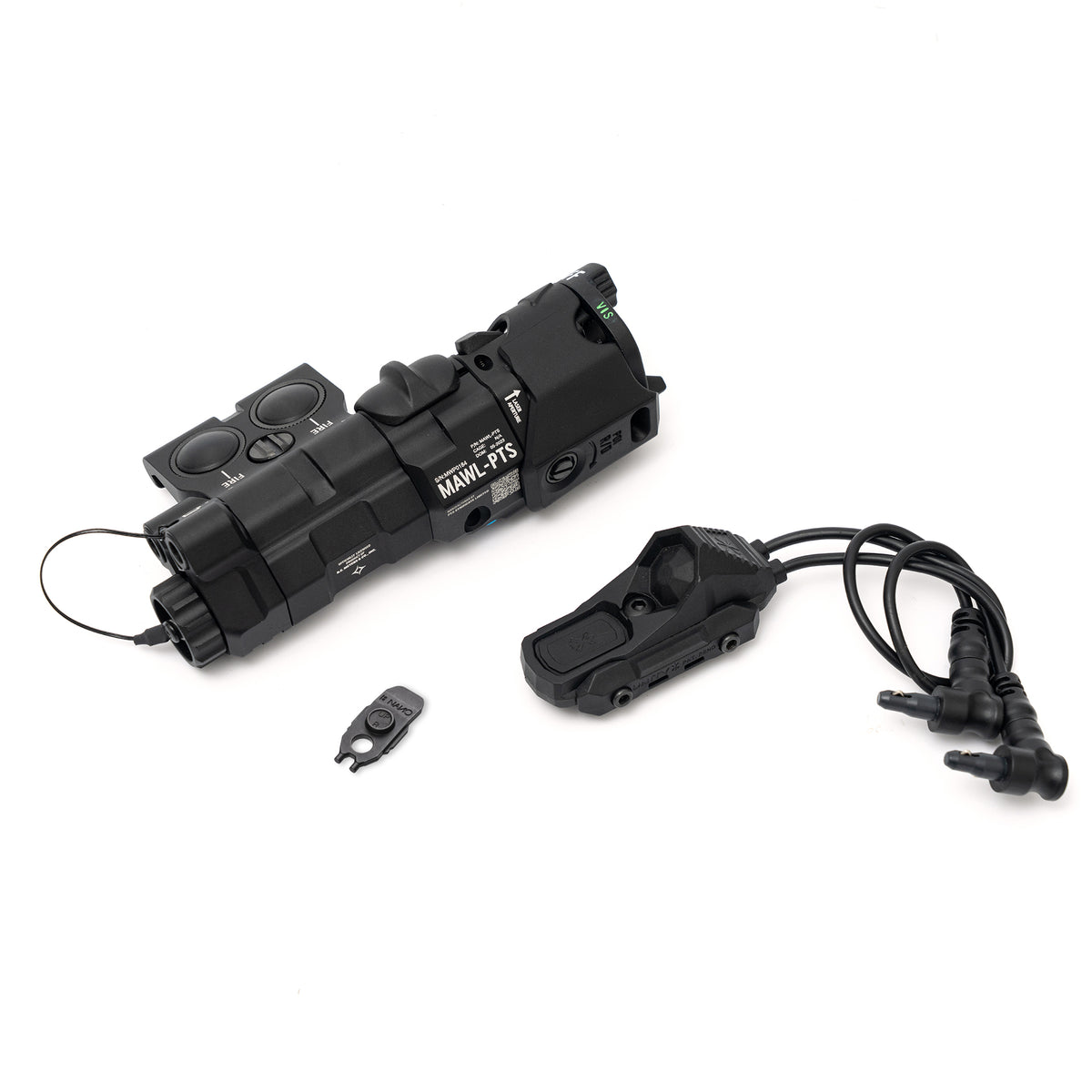

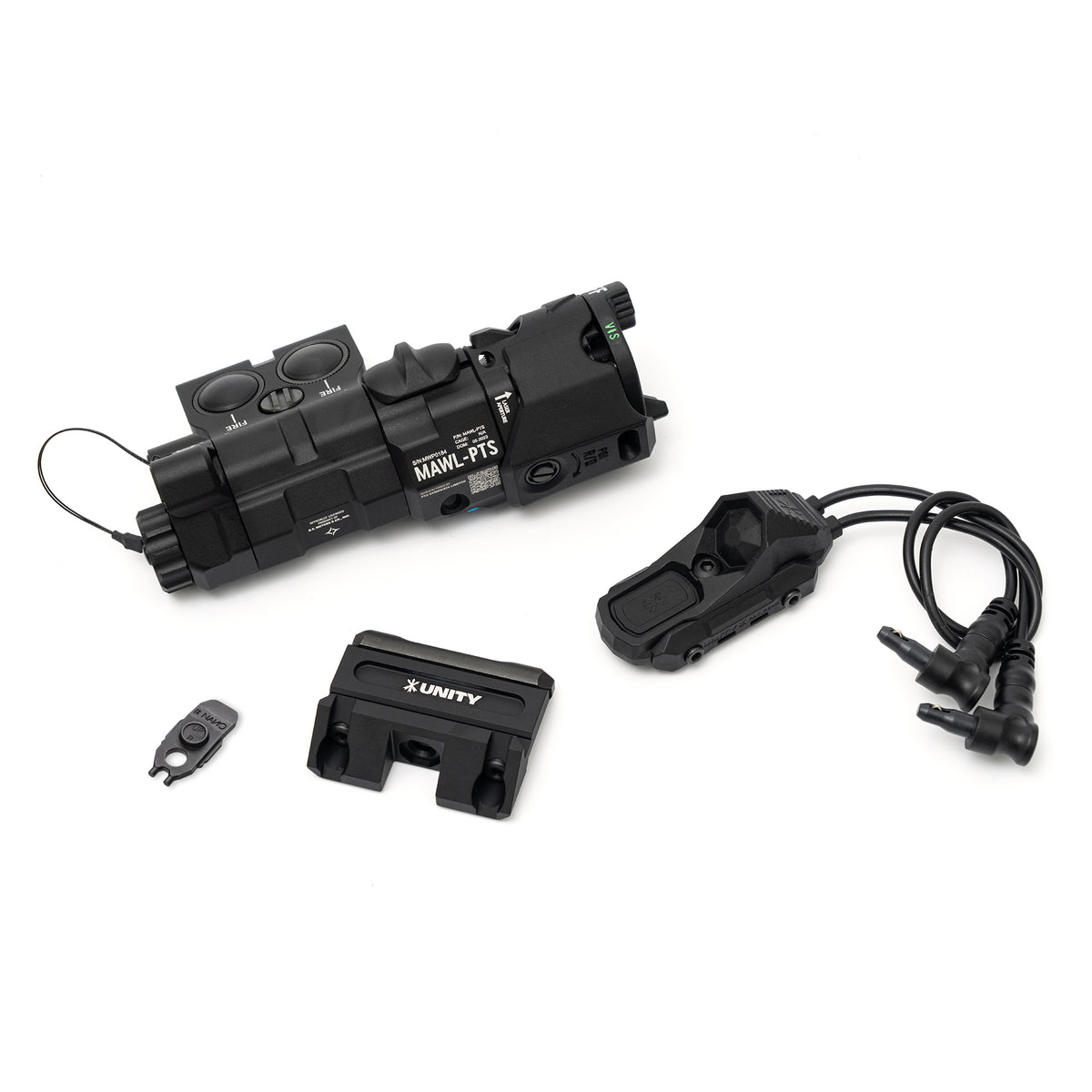

Package Contents

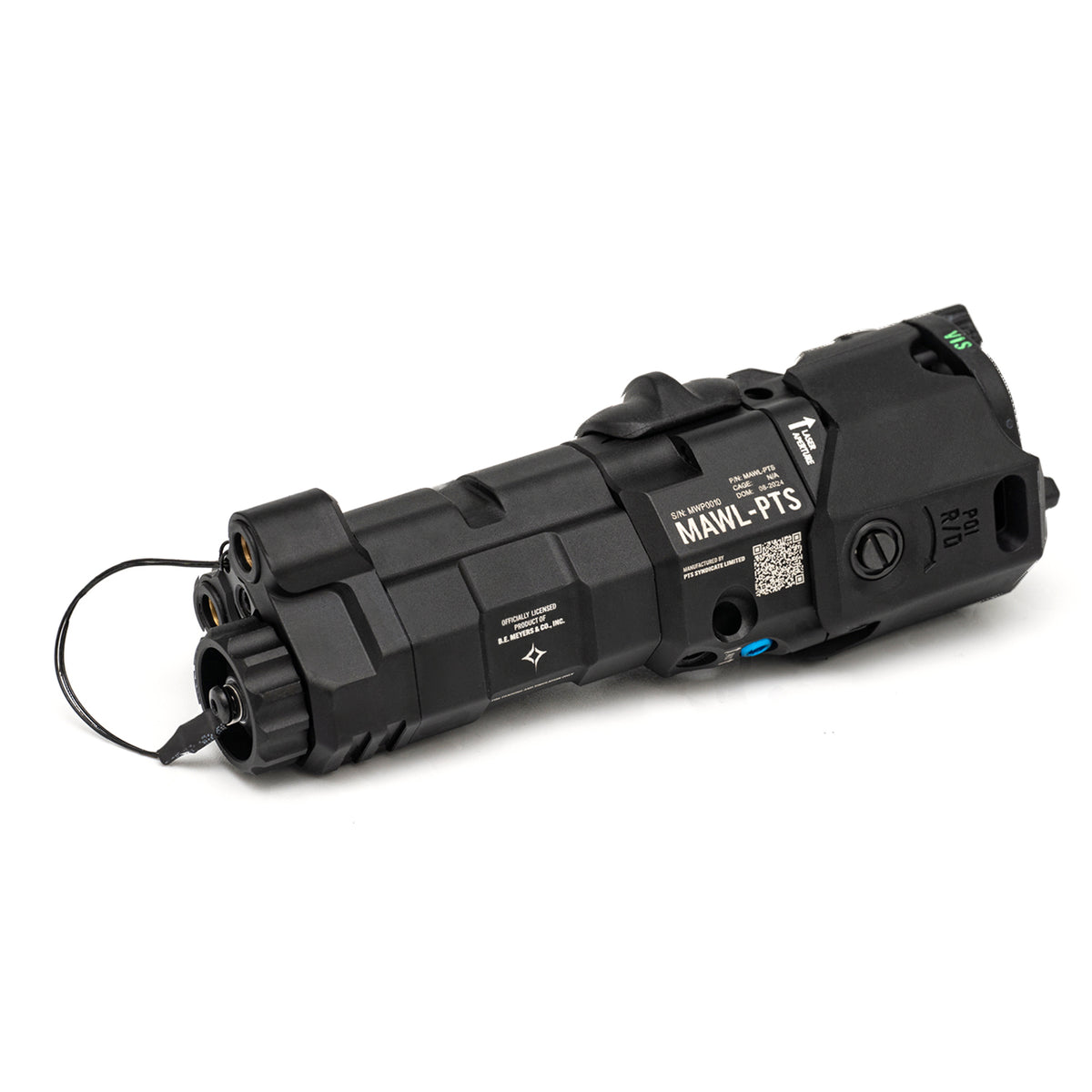

PTS MAWL-PTS Main Unit

• MAWL-PTS Laser Illuminator Module
• CR123A Battery Power System

PTS Unity Tactical AXON™

• Dual-Device Control Switch
• Can Simultaneously Control the Weapon Light and Laser
• Integrated Control Interface

Multitasker Nano

• Multi-Purpose Adjustment Tool
• Suitable for Optical and Laser Zeroing Adjustments

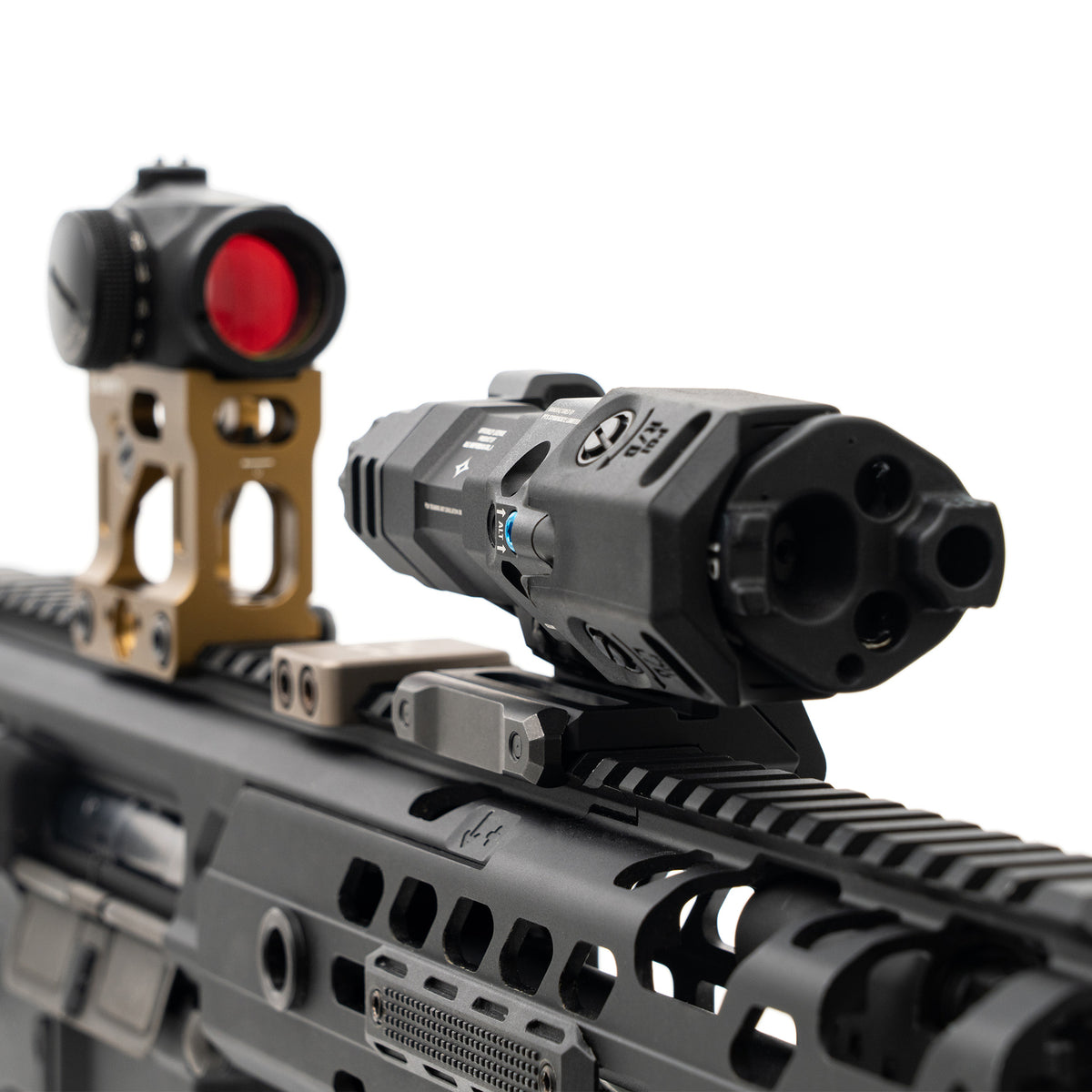

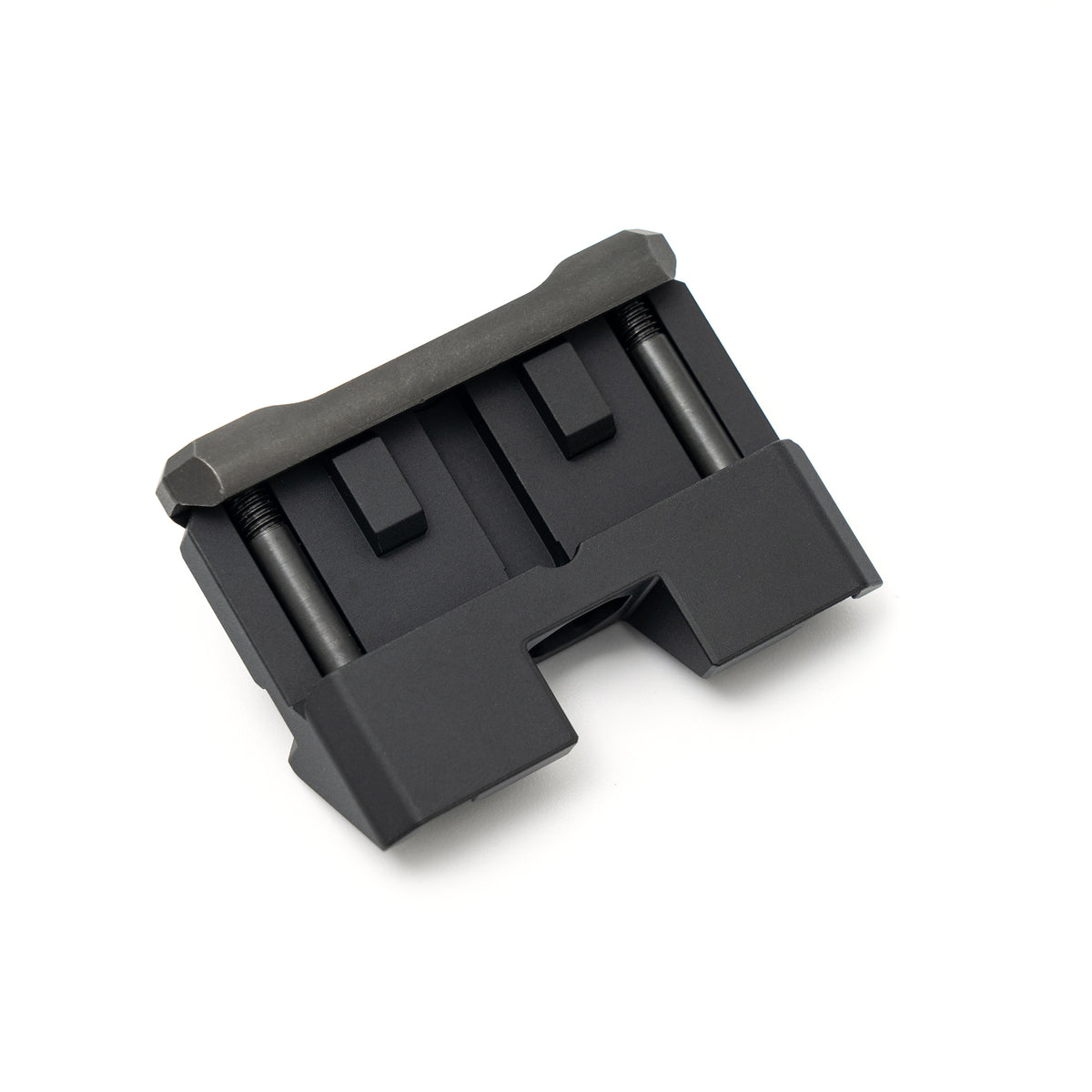

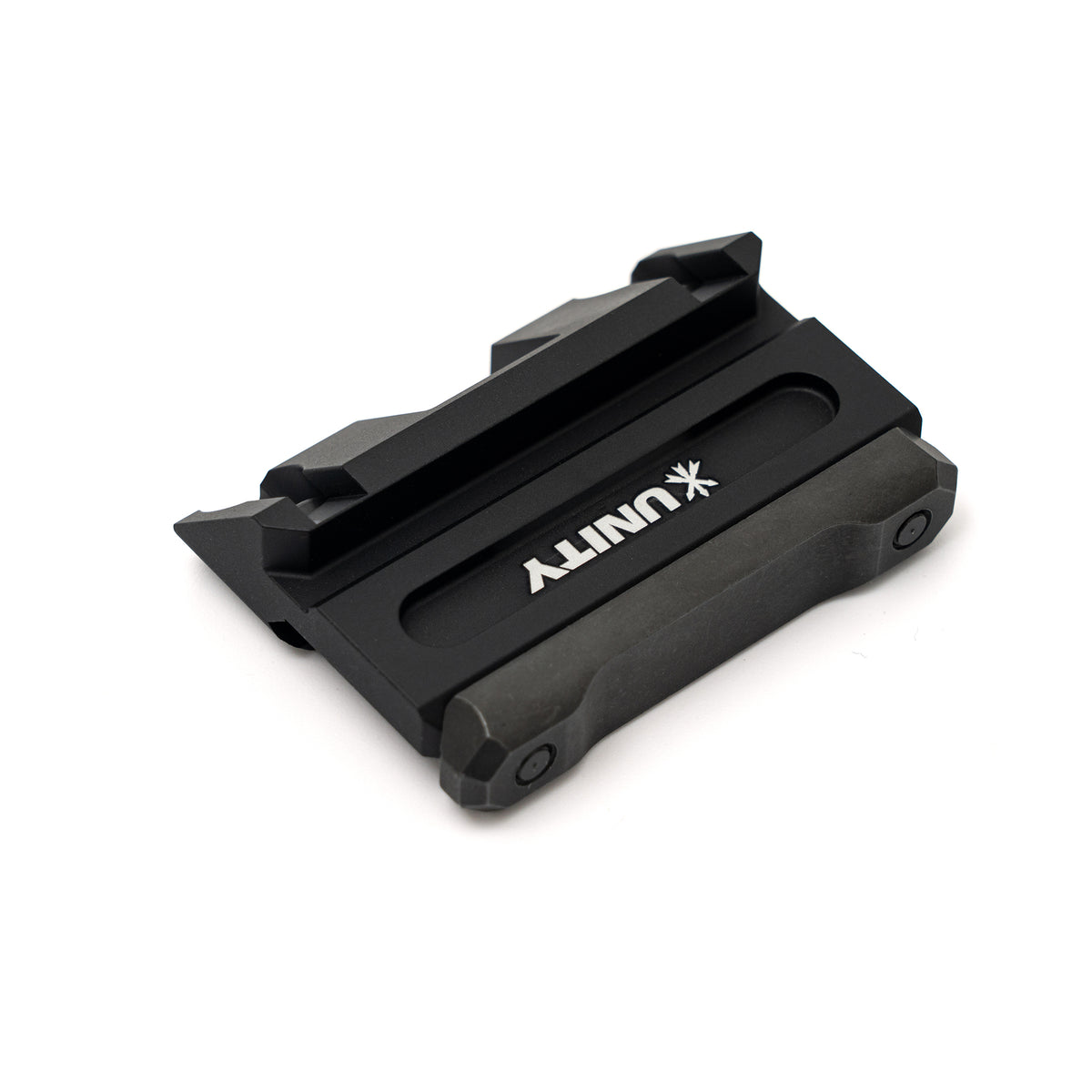

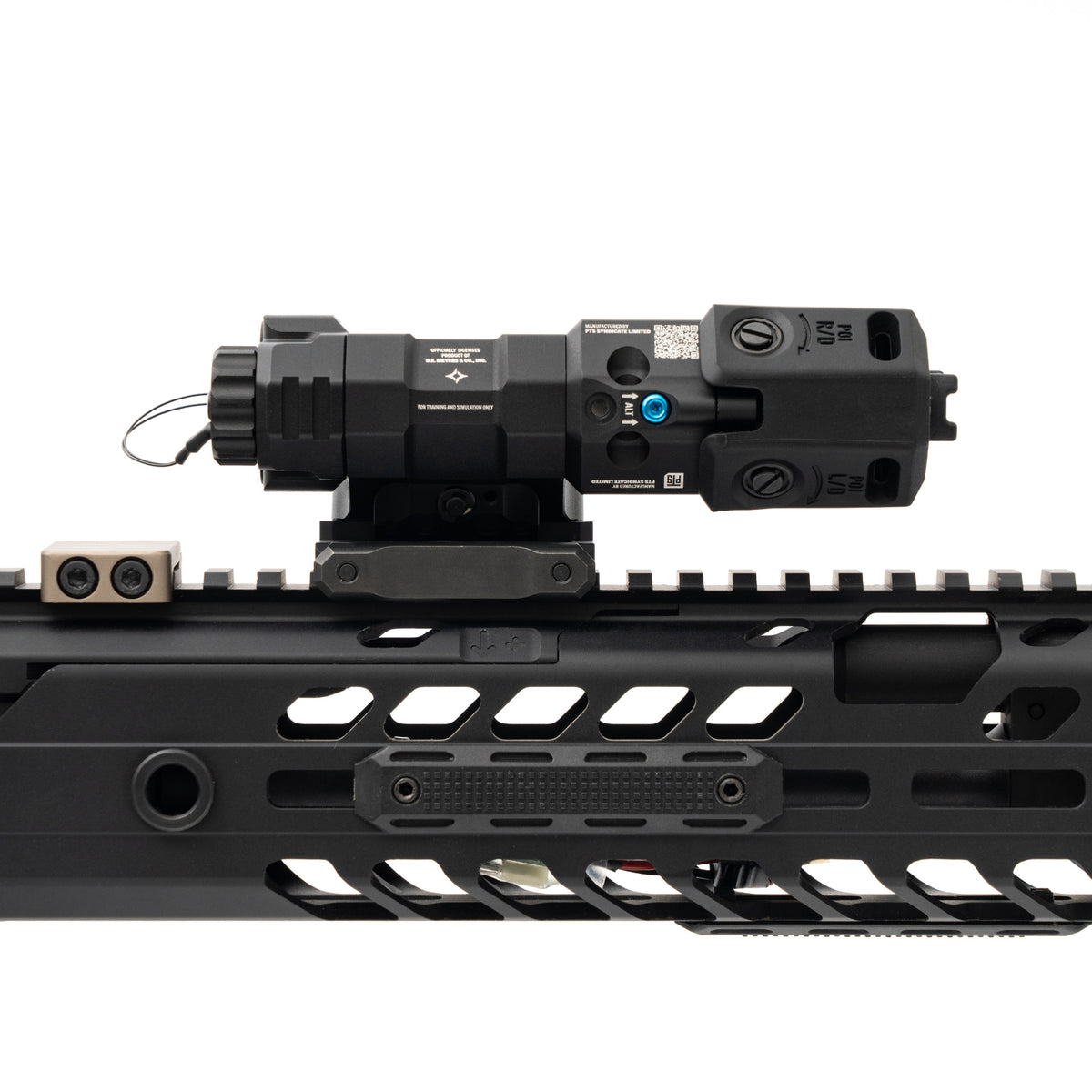

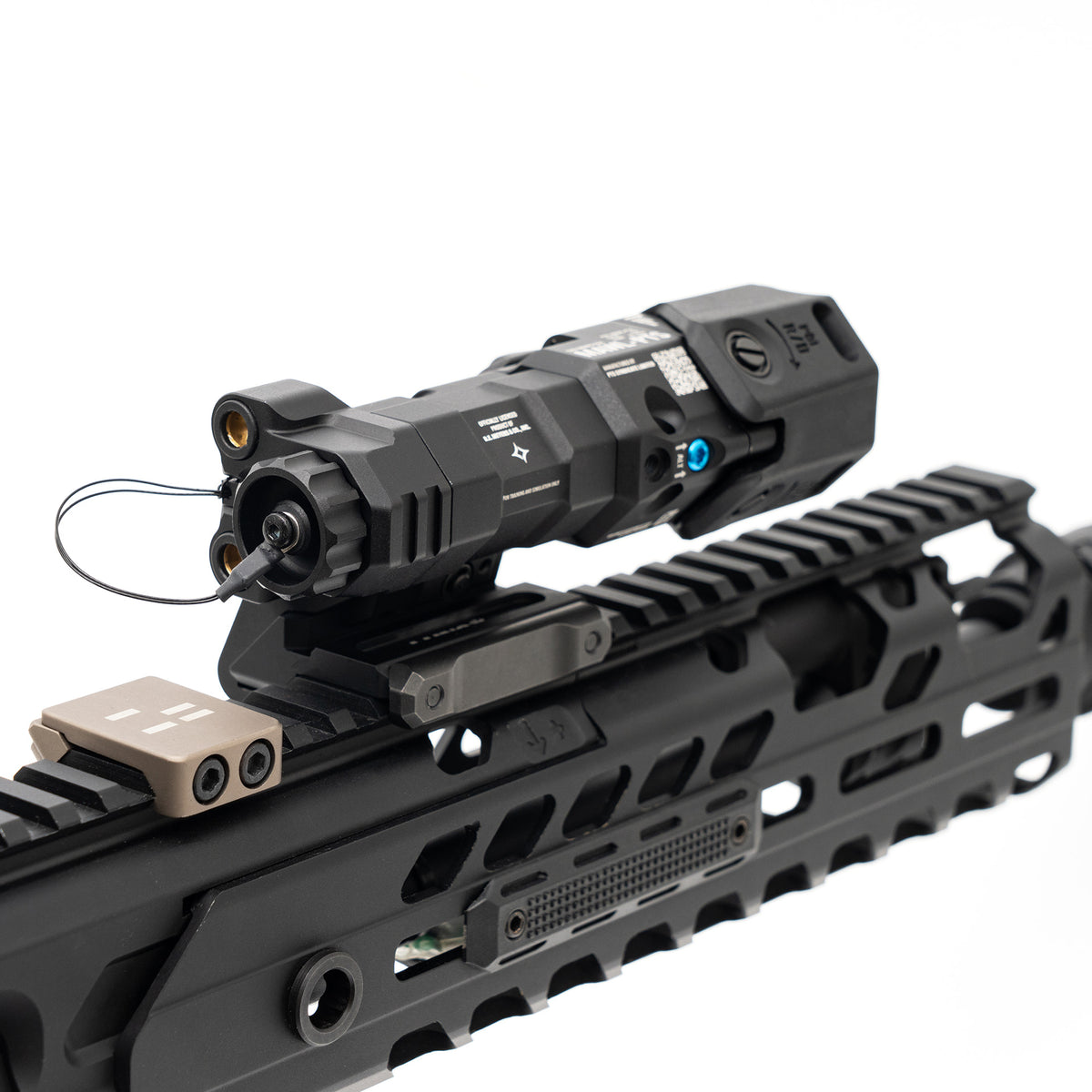

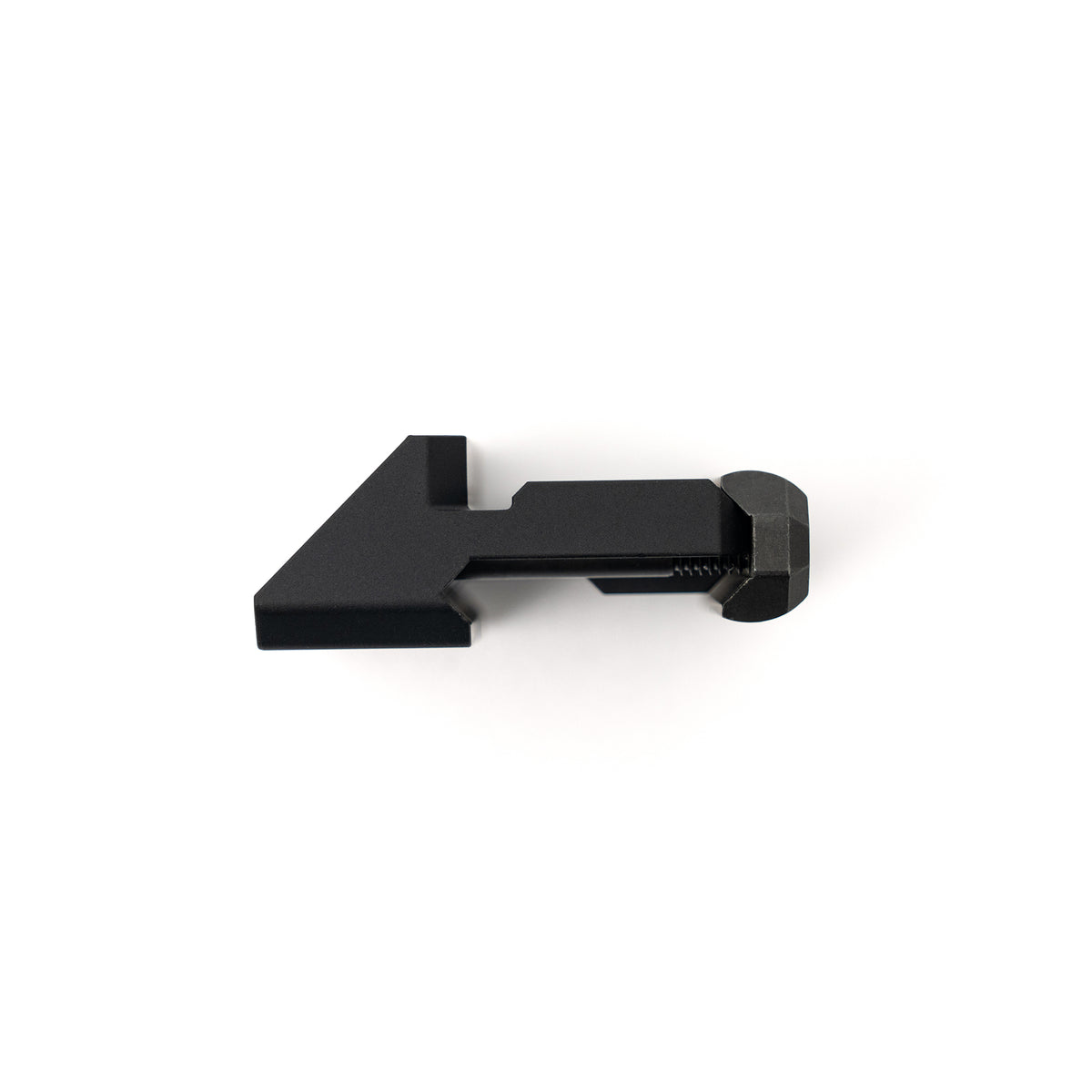

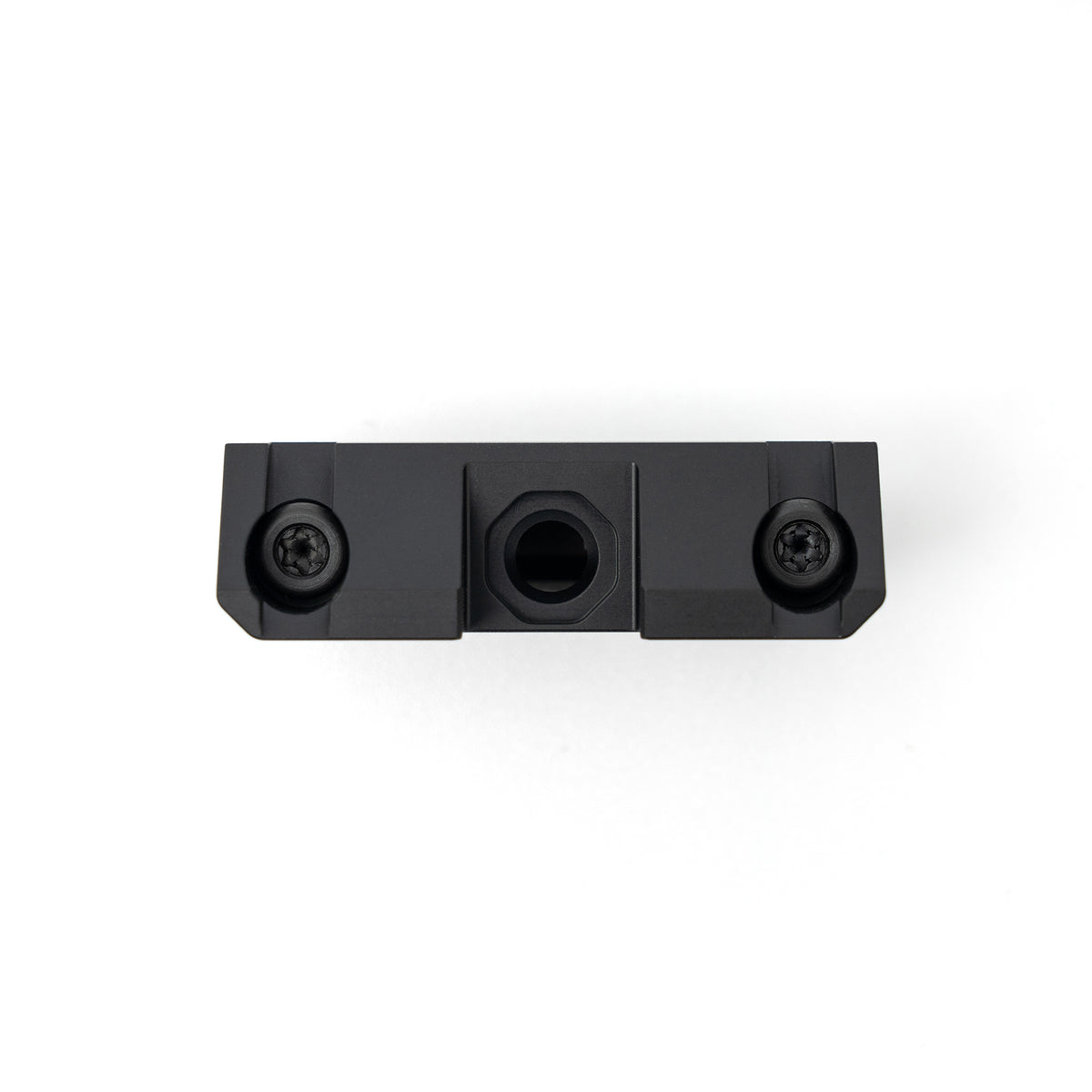

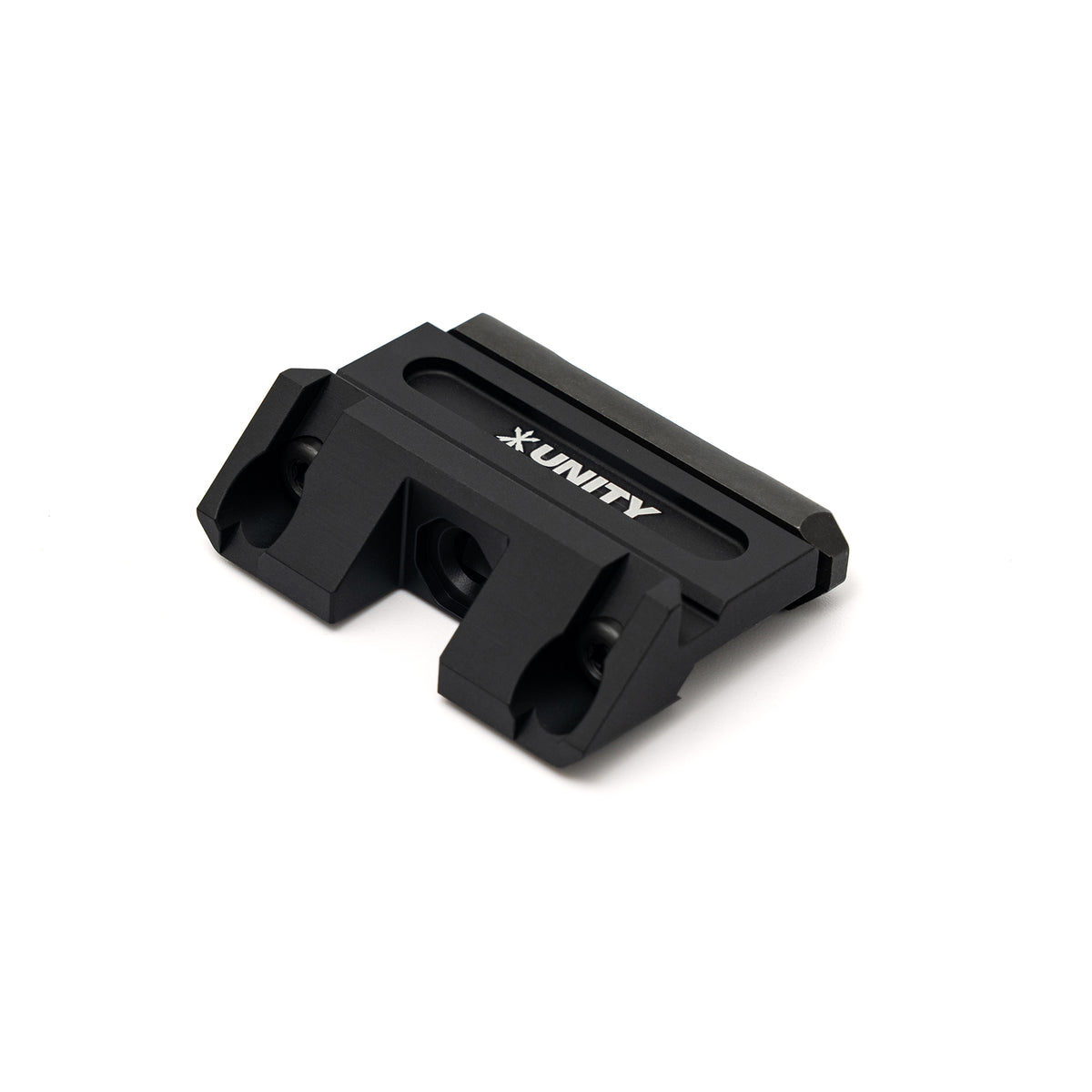

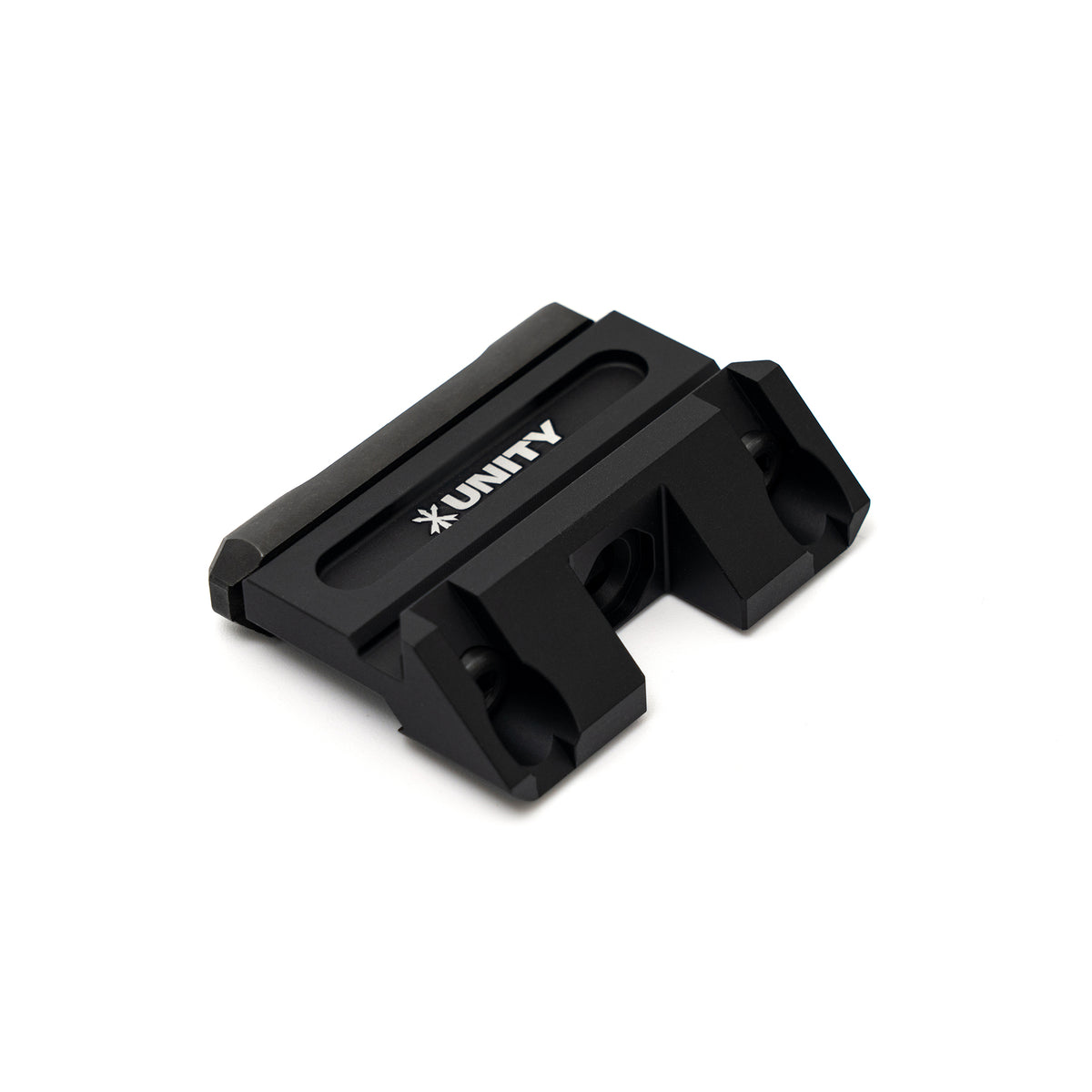

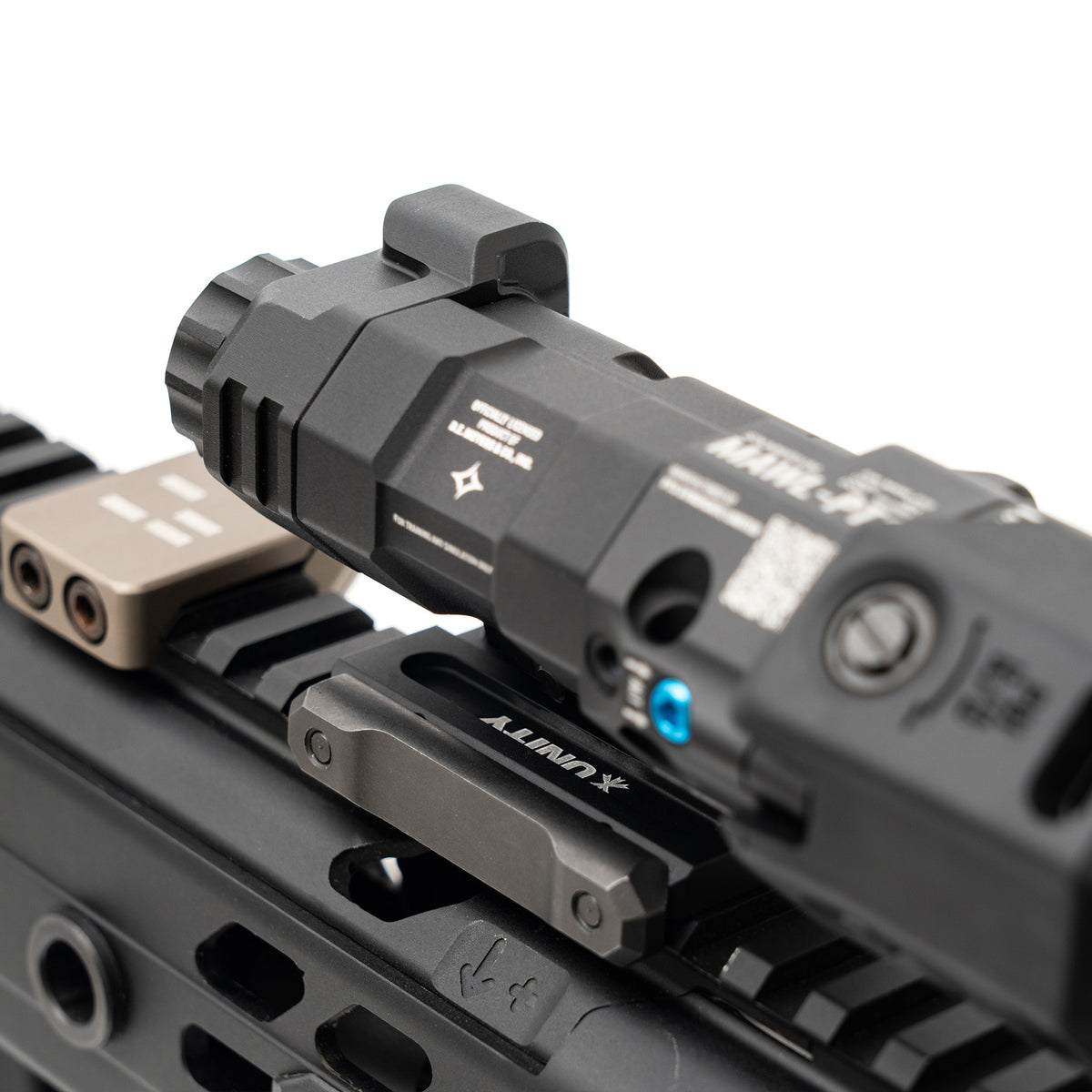

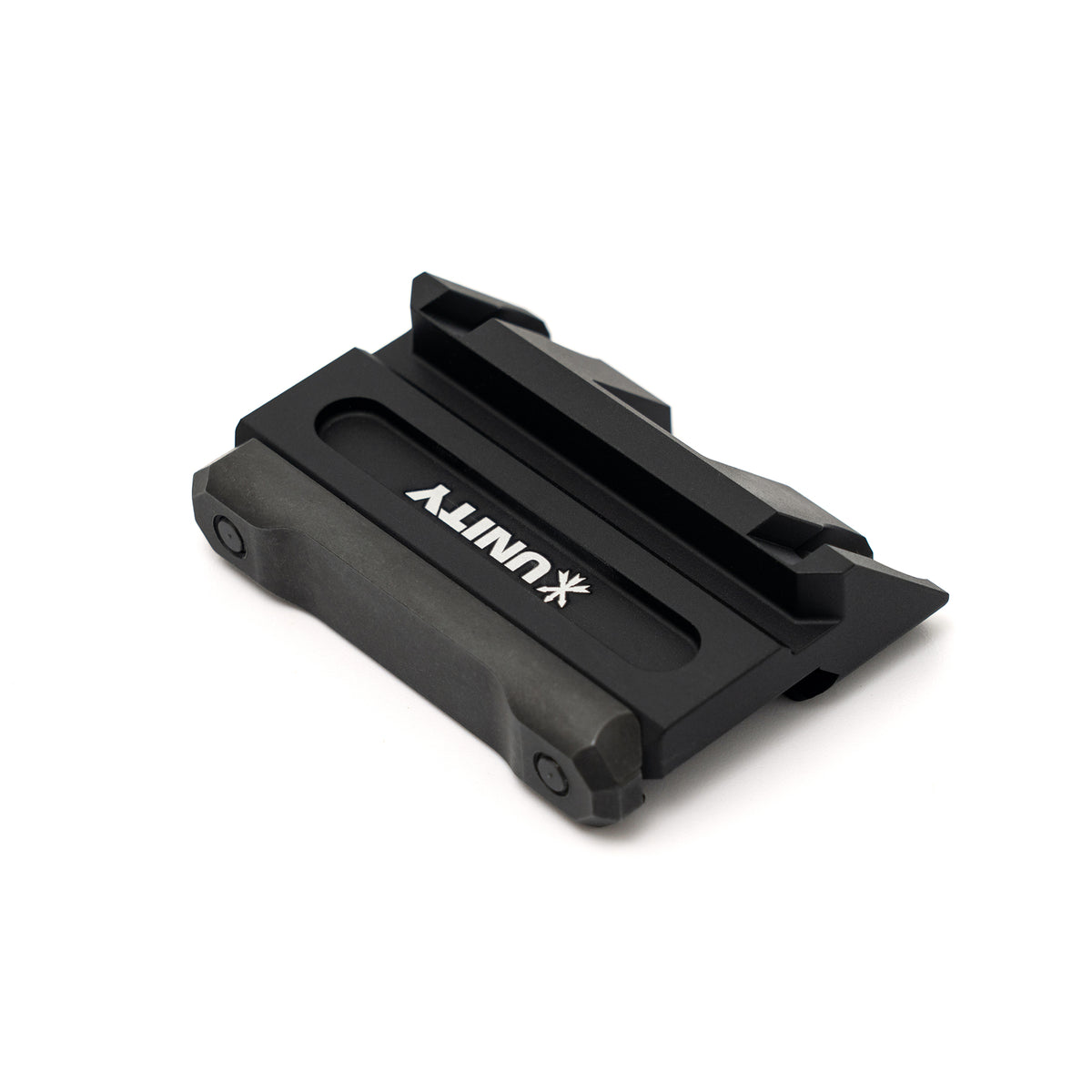

PTS Unity Tactical RAXIS™

• Dedicated Directional Mounting Base
• Raises the MAWL Mounting Position Above the Rail
• Reduces the Side-Profile Bulge
• Improves Overall Weapon Handling

---

Product Features

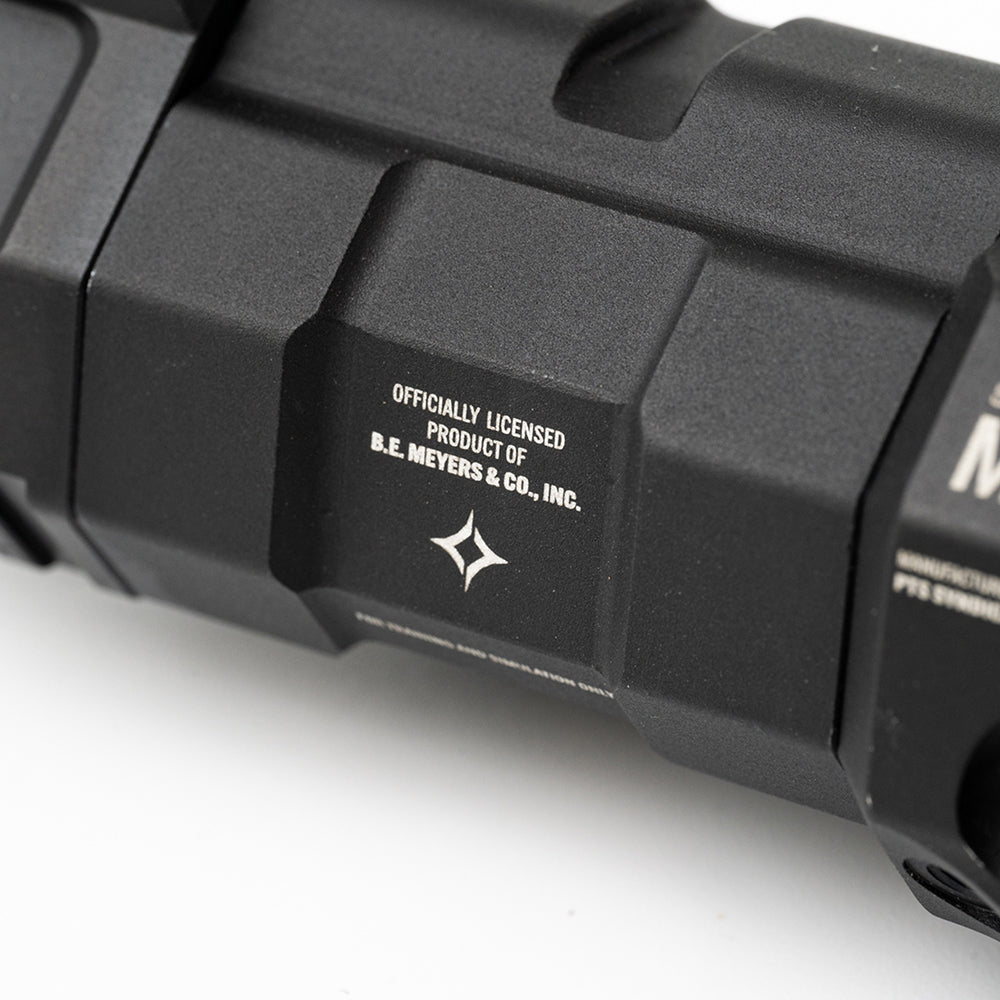

■ Officially Licensed MAWL® Appearance and Operating Logic

• Fully Licensed B.E. Meyers® Trademarks and Appearance
• Highly Accurate Reproduction of the Original Operating Interface
• Retains the Signature MAWL® Ergonomic Configuration
• Provides a More Realistic Simulated Training Experience

---

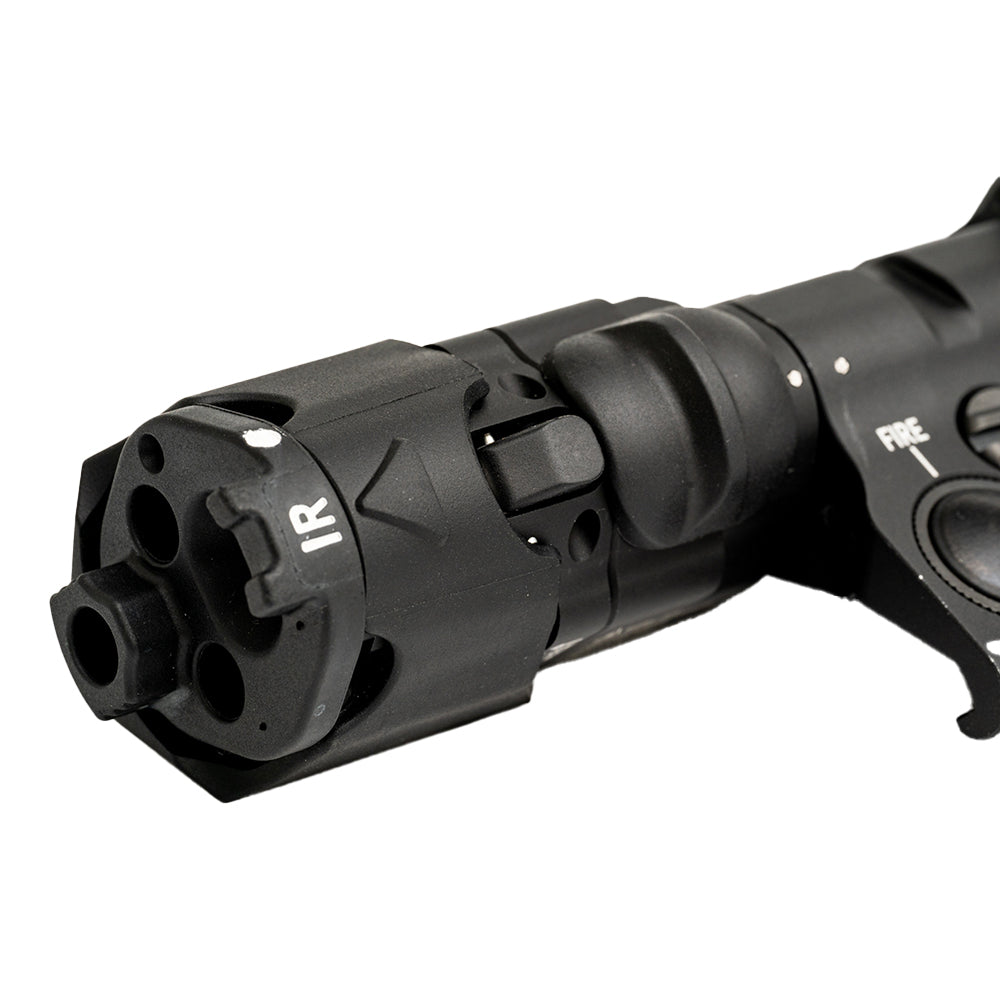

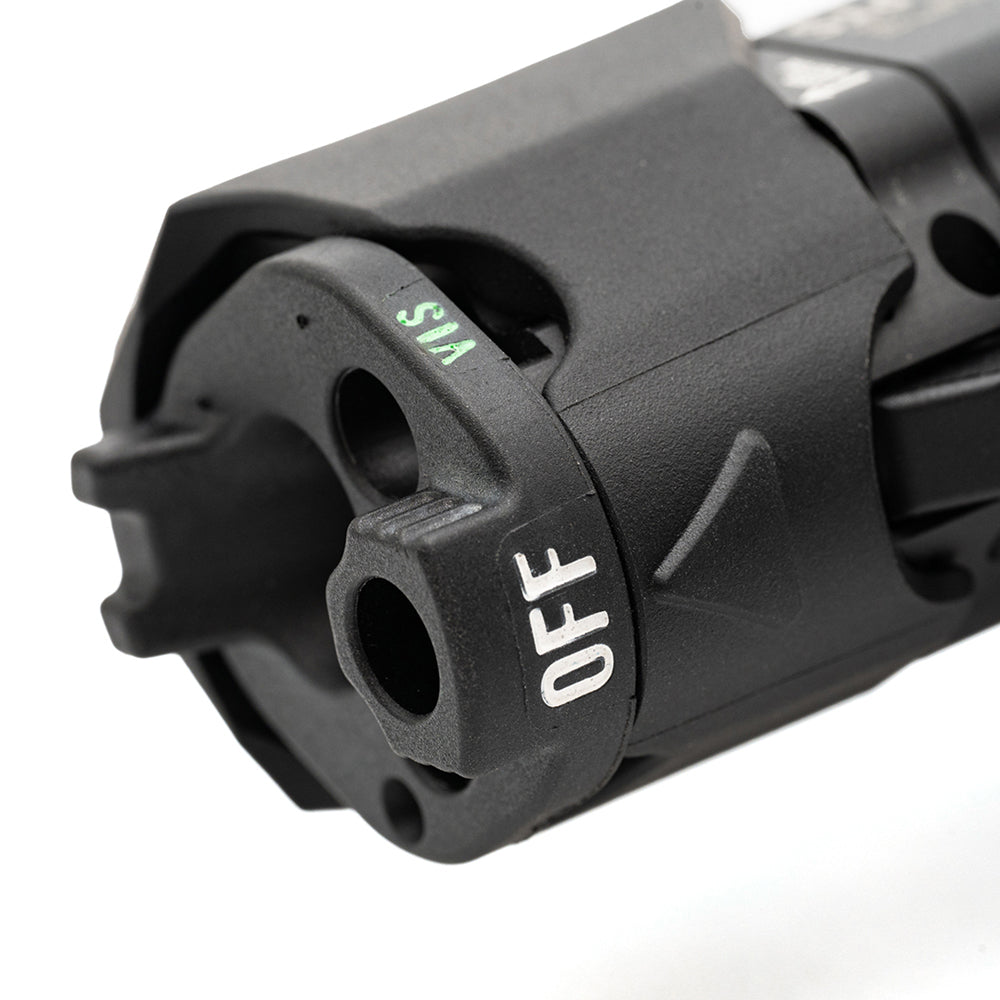

■ VIS / IR Dual Mode Switching

Main Modes:

• OFF
• VIS Visible Light Mode
• IR Infrared Mode

Can Be Quickly Switched Depending on Different Missions and Environments.

---

■ Three-Range Modes

Each Mode Can Be Switched:

SHORT

Suitable For:

• Indoor CQB
• Urban Searches
• Operations in Narrow Spaces

MID

Suitable For:

• Woodland Terrain
• Outdoor Patrols
• Medium-Range Target Identification

LONG

Suitable For:

• Long-Range Observation
• Open Area Searches
• Long-Range Target Designation

---

■ Multiple Output Mode Combinations

Supports:

• Visible Light Laser
• IR Laser Designation
• IR Illumination
• Simultaneous Output of IR Laser + IR Illumination

Can Be Quickly Selected to Provide the Best Lighting Solution for the Environment.

---

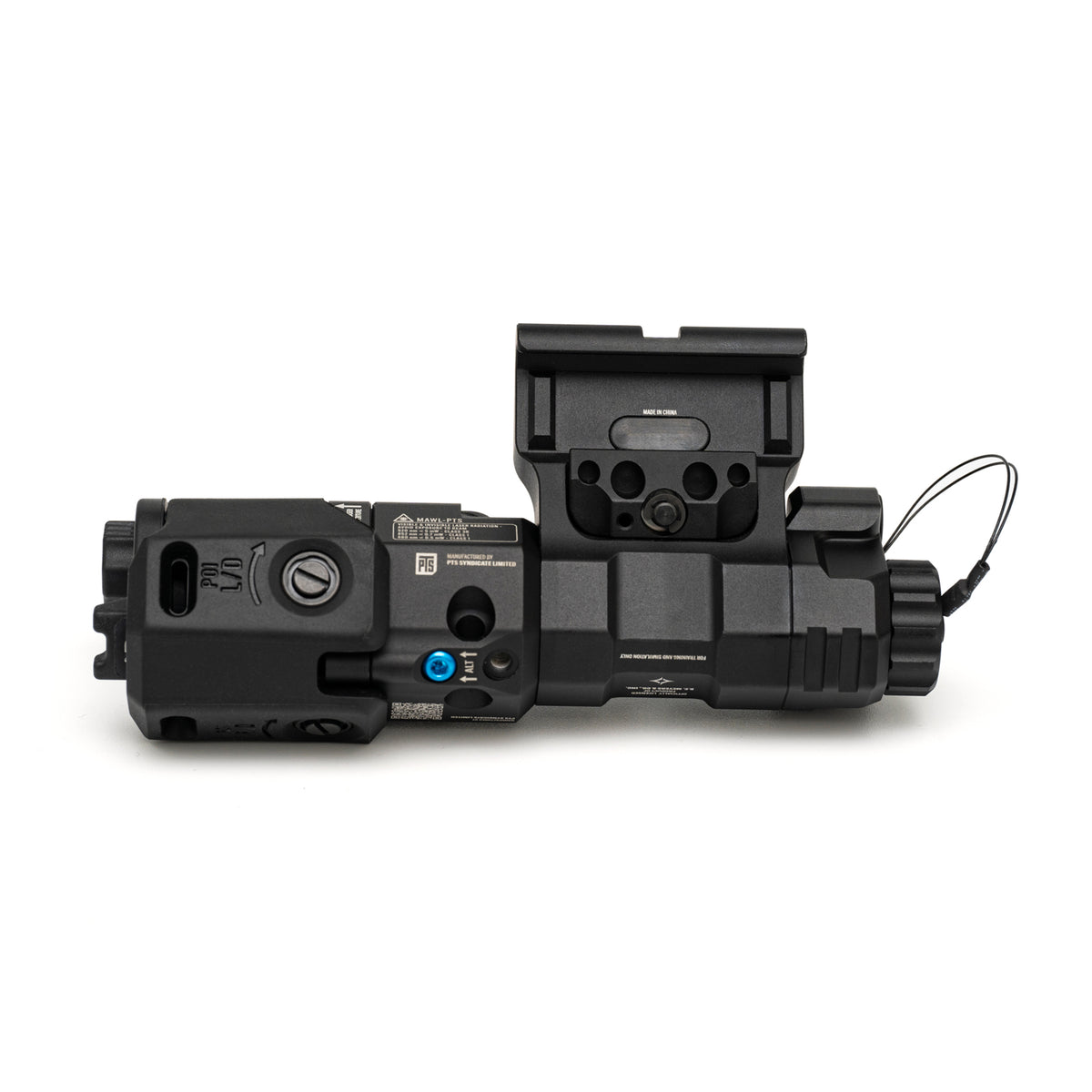

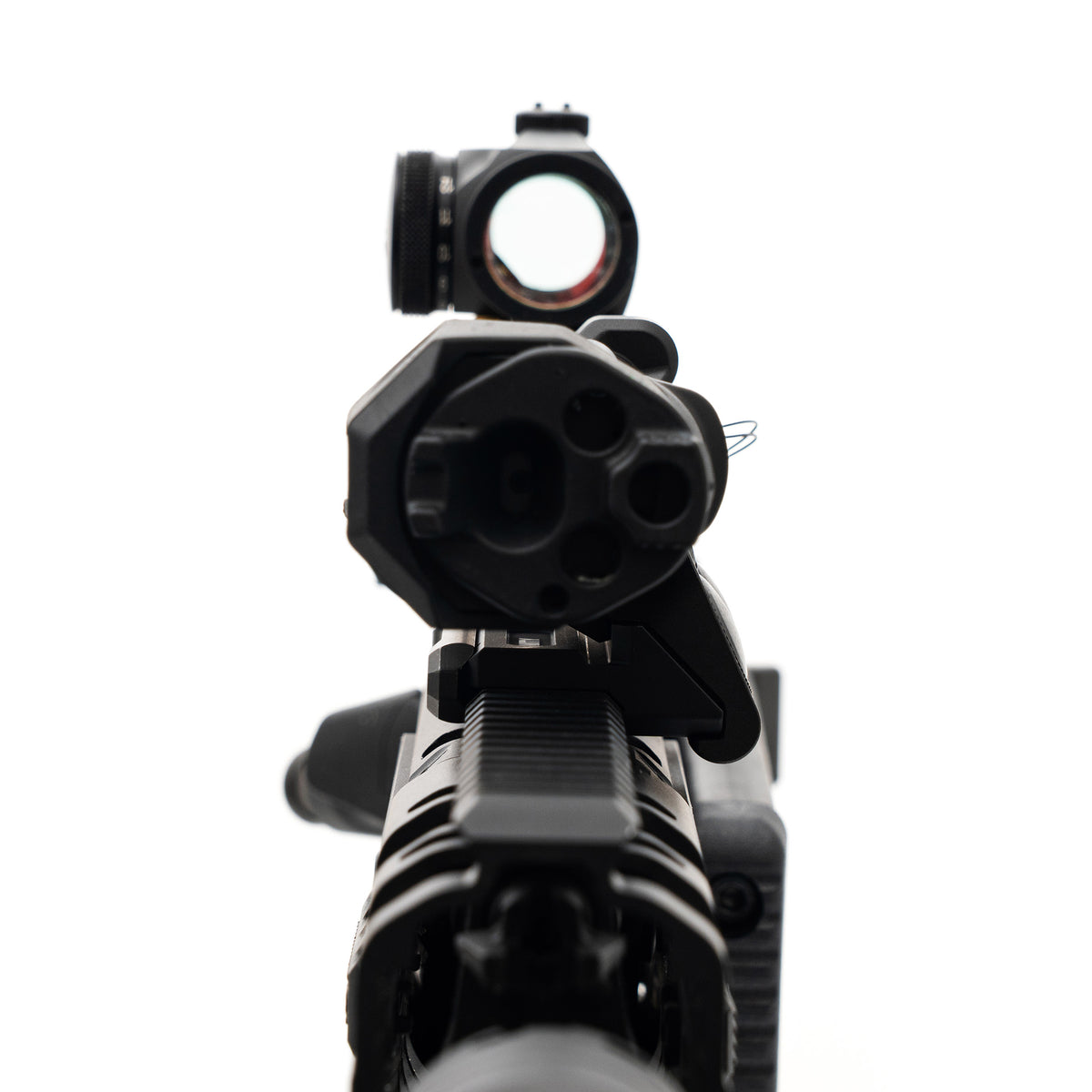

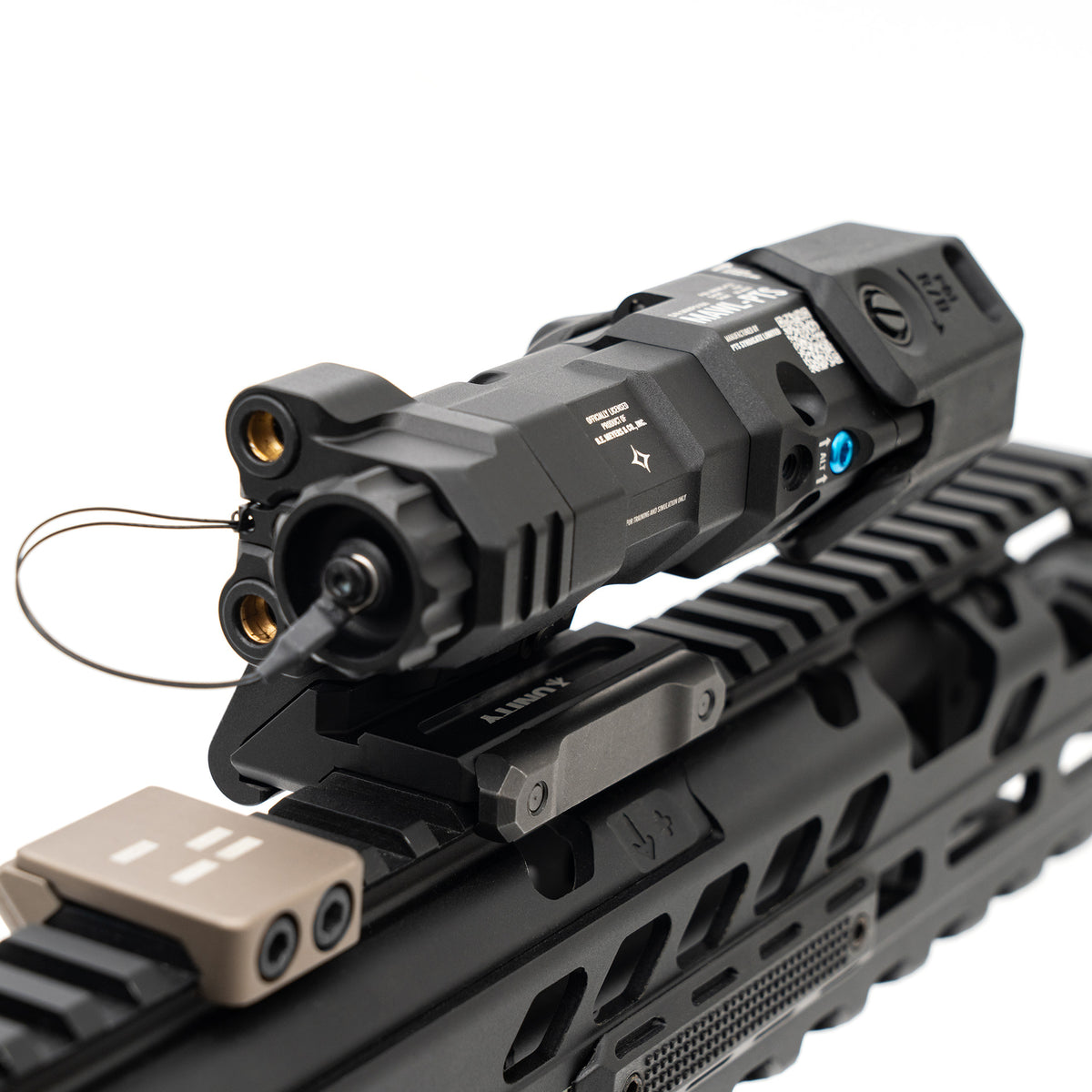

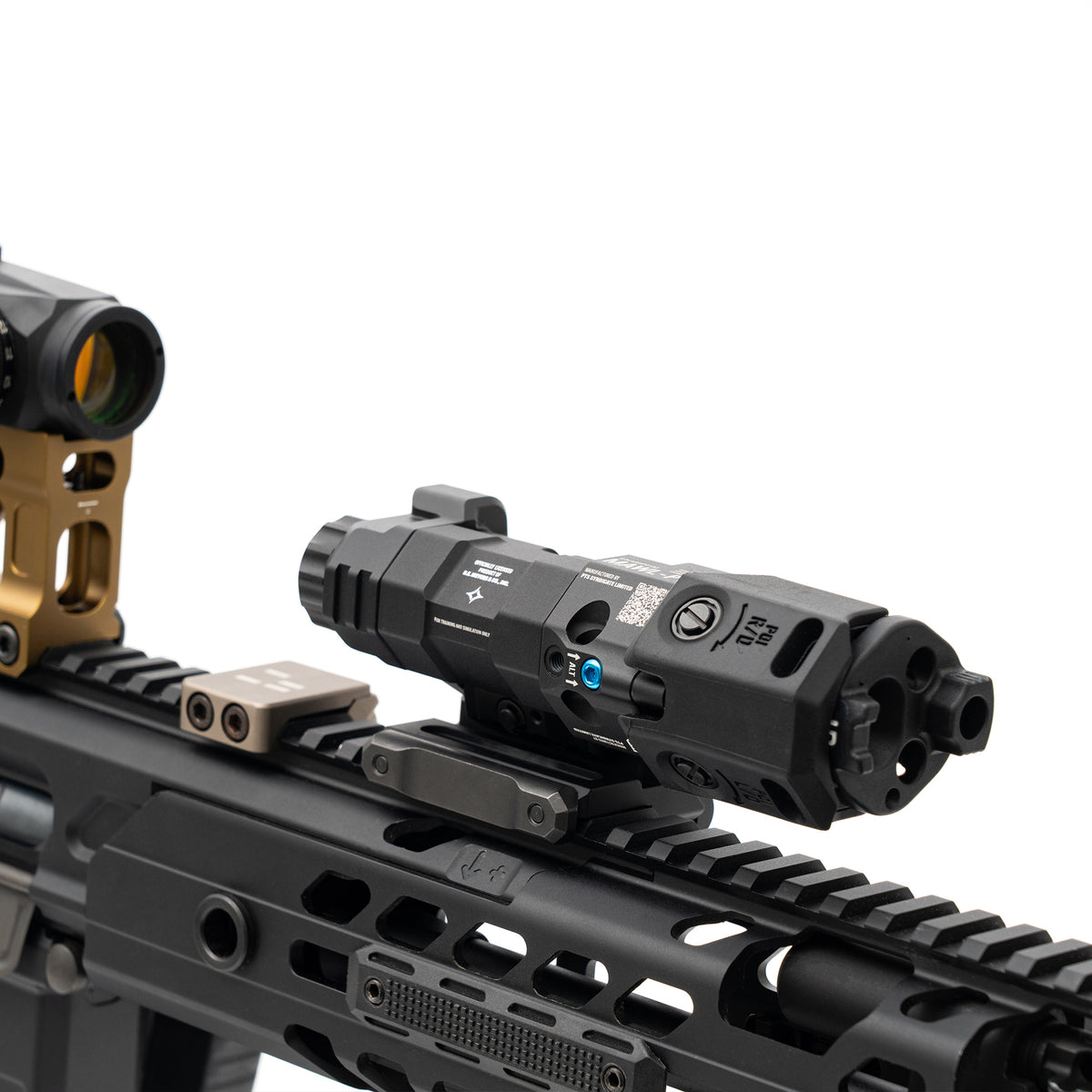

■ Offset Ergonomic Design

The Greatest Feature of the MAWL (Modular Advanced Weapon Laser) Is Its Offset Mounting Design.

Advantages Include:

• Does Not Obstruct the Sight Picture
• More Natural Thumb Operation Path
• Improves Nighttime Operation Efficiency
• Convenient for Both Left- and Right-Handed Shooters

---

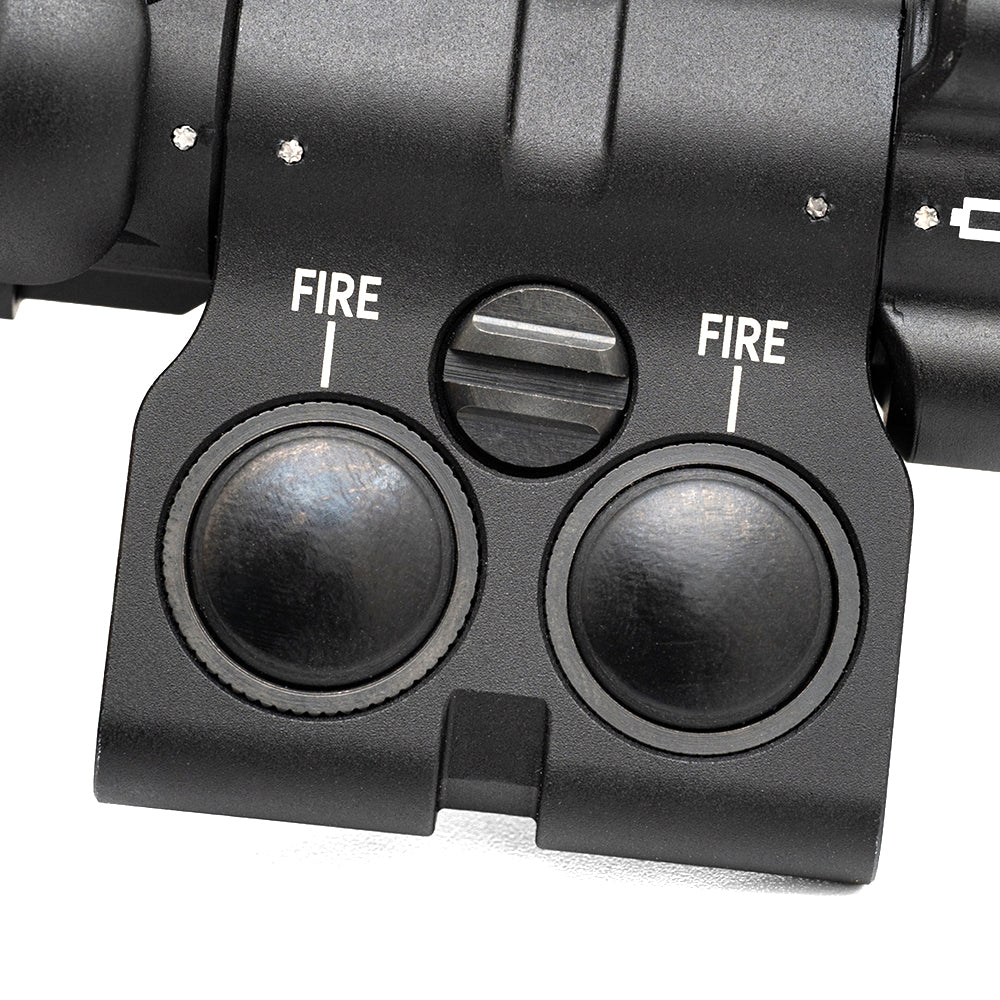

■ Intuitive Button Controls

Button A (Front Button)

Button B (Rear Button)

Operating Logic:

• Long Press: Instant Activation
• Double Click: Continuous-On Mode
• Triple Click: Special Output Mode

Remains Intuitive and Smooth Even When Operating with Gloves.

---

■ Advanced TRIPLE-CLICK Function

Special Outputs Can Be Activated in LONG Mode:

Triple Click Button A

Activates:

• High-Power Long-Range Illumination
• Simultaneous IR Laser Output

Suitable For:

• Long-Range Searches
• Long-Range Observation

Triple Click Button B

Activates:

• High-Power IR Designation Laser

Suitable For:

• Team-Based Target Designation
• Long-Range Night Vision Designation

---

■ High-Precision Coaxial Zeroing System

• Coaxial Design of the Laser and Illuminator
• Reduces Zeroing Errors
• Improves Shooting Consistency

Adjustment Precision:

• 0.3 mrad per Click

---

■ CNC Aluminum Alloy Body

Features:

• Precision CNC Machining
• 6000 Series Aluminum Alloy

Characteristics:

• High Strength
• Impact Resistant
• Wear Resistant
• Long-Term Stable Use

---

Green-Light Version vs. Red-Light Version Comparison

---

Technical Specifications

Color

• Black

Material

• CNC 6000 Series Aluminum Alloy

Surface Treatment

• Black Anodized Finish

Dimensions

• 12.7 × 7.1 × 5.1 cm

Weight

• Approx. 260 g (Without Battery)
• Approx. 276 g (With Battery)

Power Supply

• CR123A Battery × 1

Adjustment Precision

• 0.3 mrad/Click

Laser Divergence Angle

Pointer

• 0.5 mrad

Illuminator

• 2°
• 30°
• 60°

Output Modes

• OFF
• VIS
• IR
• SHORT
• MID
• LONG

Output Power Range

• 0.25mW ～ 67mW

Wavelength

IR Illuminator

• 850nm

IR Pointer

• 850nm

Green Pointer

• 520nm

Red Pointer

• 650nm

---

Precautions

• This product is designed for airsoft, training, and simulation purposes.
• It is not suitable for use with real firearms.
• Please comply with the local regulations regarding laser devices.
• The actual package contents are subject to the manufacturer's announcement.
